DCL-M TECH SPECS
MARINE DOME CAMERA LIFT

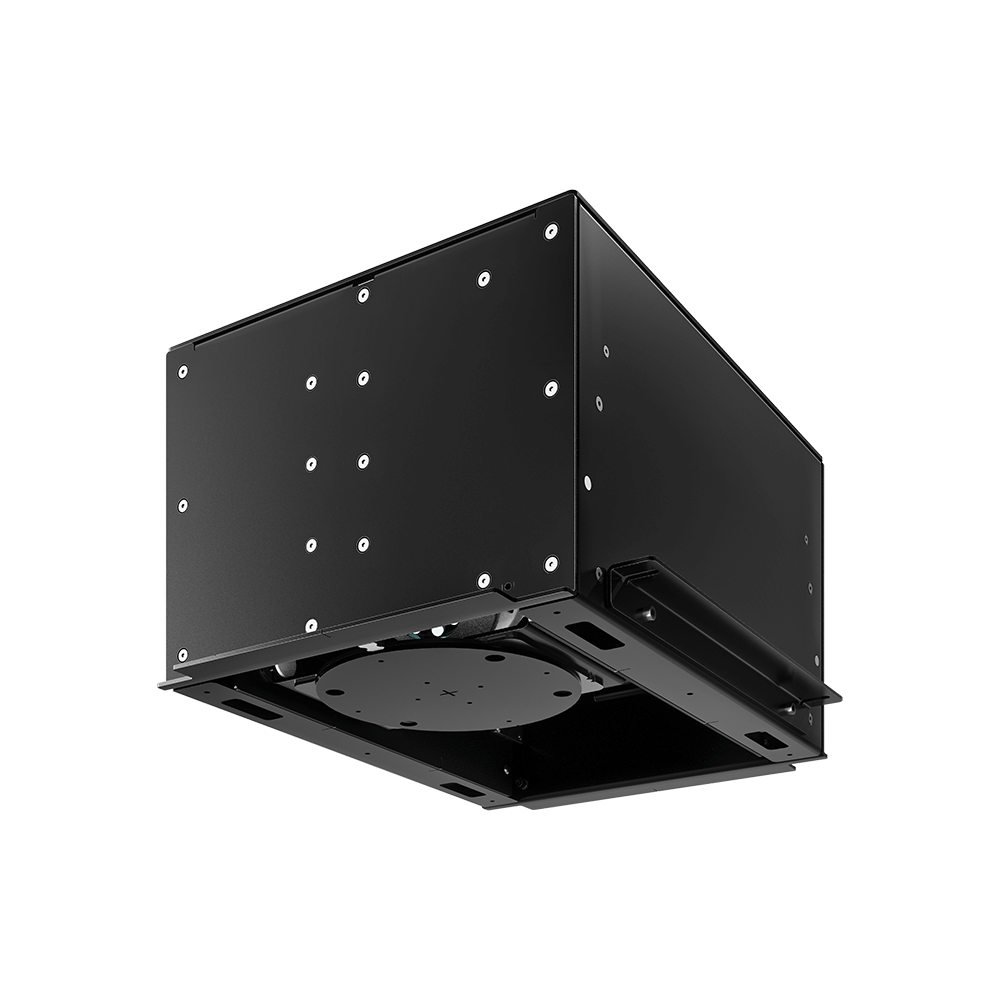

The DCL-M is a marine suitable motorised mechanism designed to discreetly conceal a dome CCTV camera within the ceiling.

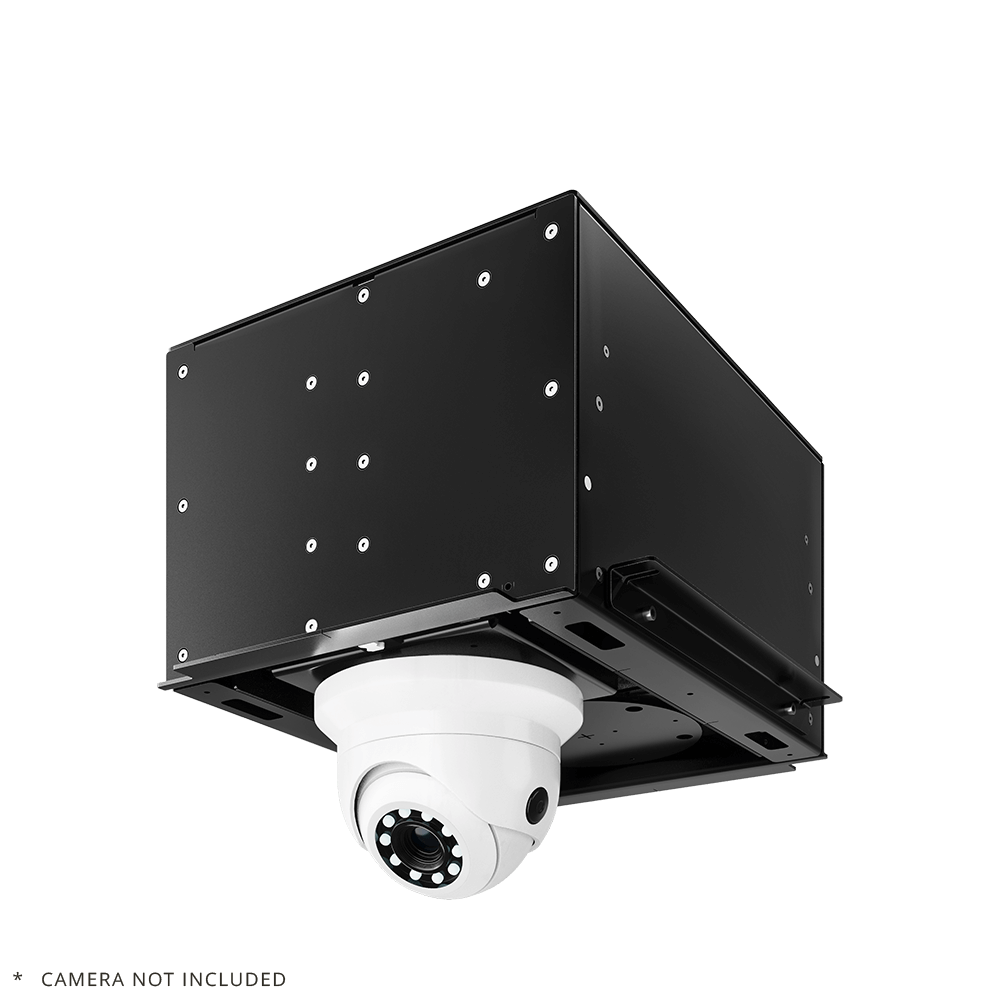

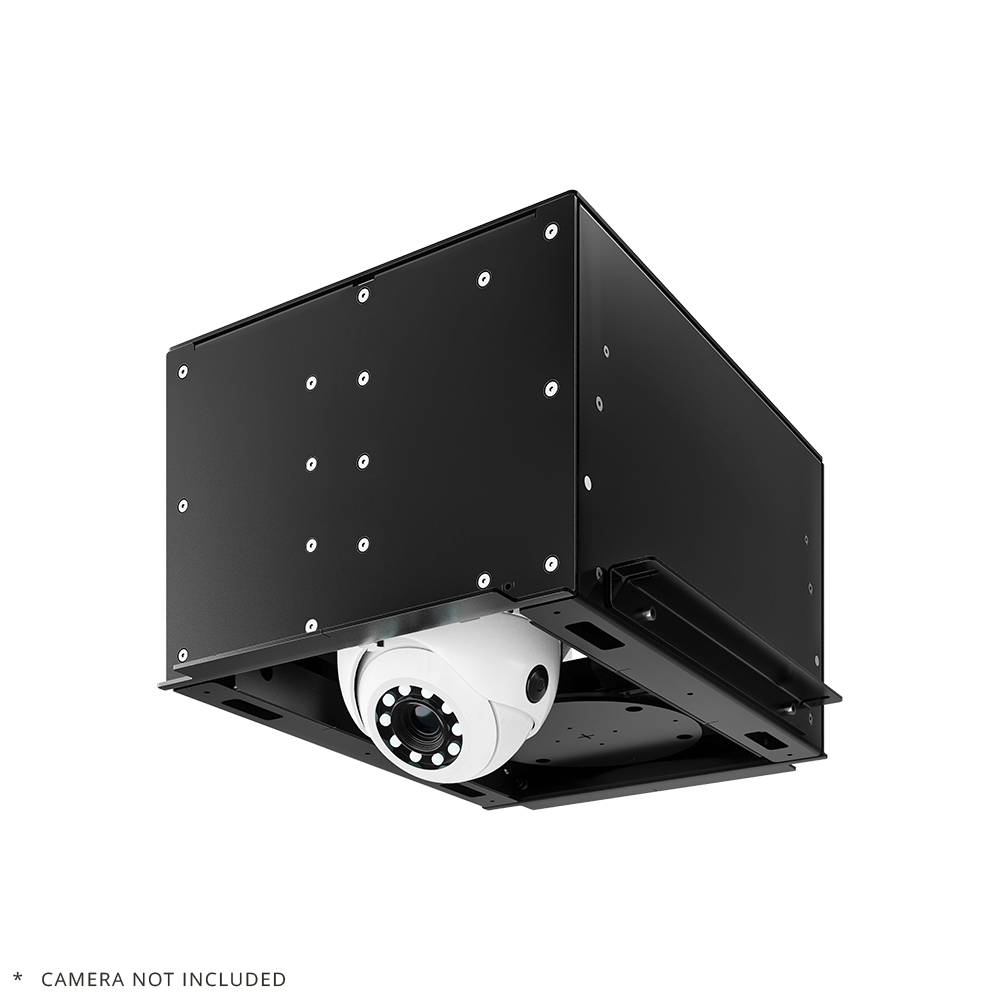

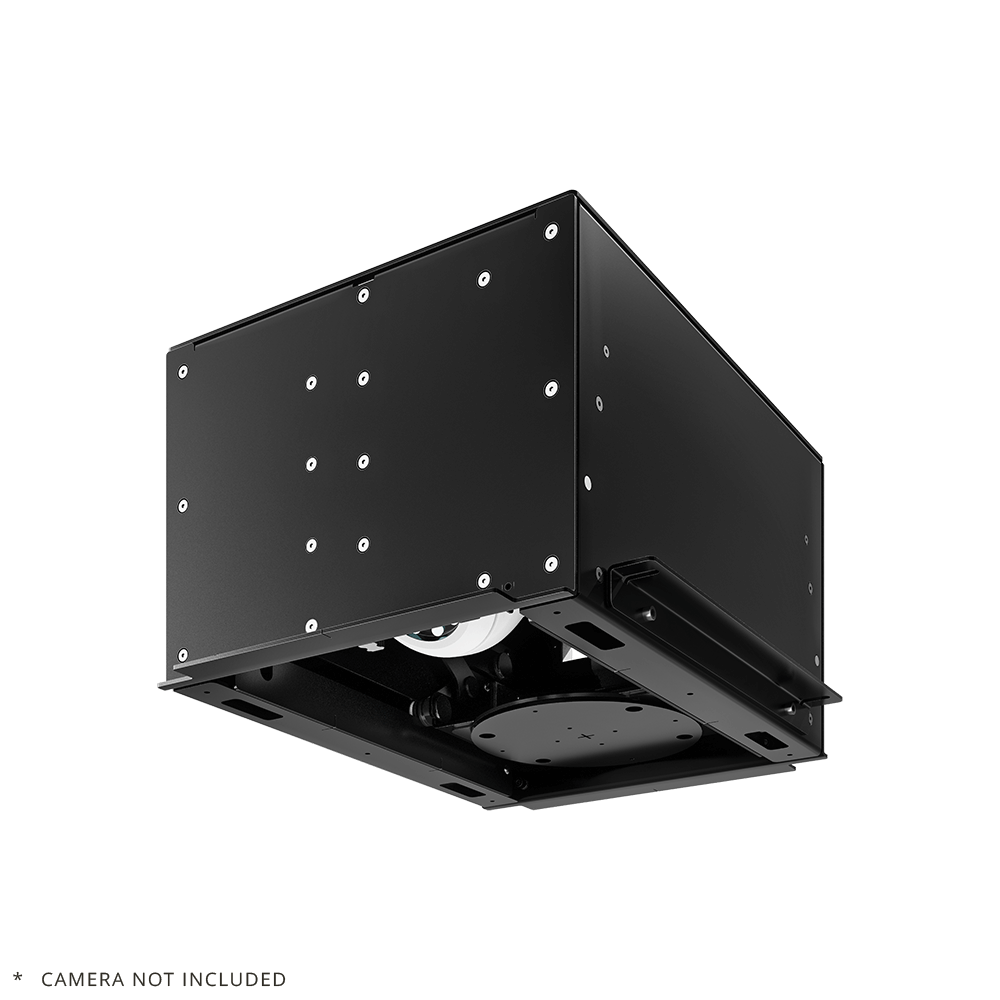

In the deployed position, the camera extends downward through the ceiling for complete operational access and full field-of-view coverage. When not in use, the system raises the camera into the concealed space, where the cover panel precisely fills the opening to achieve an elegant, flush-finished appearance with the surrounding ceiling. The twist-in cover panel mount enables the installer to add material matched to the surrounding ceiling for a perfect finish.
Engineered specifically for demanding marine environments, the DCL-M features robust construction, an external IP-rated control box (IP66), and the flexibility to finish the cover panel to match the ceiling material and color, ensuring reliable performance and a discreet, high-end integration in superyacht installations.
Residential / commercial suitable version available DCL-R
| MAX CAMERA DIAMETER | ||||
|---|---|---|---|---|
| 160MM [6 5/16"] | 210MM [8 1/4"] | 260MM [10 1/4"] | ||
| MAX CAMERA HEIGHT | 55MM [2 3/16"] | DCL-M1-180 | DCL-M2-180 | DCL-M3-180 |
| 80MM [3 1/8"] | DCL-M1-205 | DCL-M2-205 | DCL-M3-205 | |
| 115MM [4 1/2"] | DCL-M1-240 | DCL-M2-240 | DCL-M3-240 | |
| 145MM [5 11/16"] | DCL-M1-270 | DCL-M2-270 | DCL-M3-270 | |
| 175MM [6 7/8"] | DCL-M1-300 | DCL-M2-300 | DCL-M3-300 | |
| 235MM [9 1/4"] | DCL-M1-360 | DCL-M2-360 | DCL-M3-360 | |
HAND CRAFTED IN HOUSE
TECHNICAL SPECIFICATION
| PRODUCT CODE | DCL-M1 | DCL-M2 | DCL-M3 |
|---|---|---|---|
| CONTROL OPTIONS (AS STANDARD) | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR |
| FINISH (CUSTOM AVAILABLE) |
MECHANISM: BLACK - RAL9005 CAMERA MOUNT: WHITE - RAL9910 SATIN FINISH |
MECHANISM: BLACK - RAL9005 CAMERA MOUNT: WHITE - RAL9910 SATIN FINISH |
MECHANISM: BLACK - RAL9005 CAMERA MOUNT: WHITE - RAL9910 SATIN FINISH |
| MAX CAMERA DIAMETER | Ø160MM [6 5/16"] | Ø210MM [8 1/4"] | Ø260MM [10 1/4"] |
| MAX CAMERA HEIGHT |
AVAILABLE IN 6 HEIGHTS: DCL-M1-180 - 55MM [2 3/16"] DCL-M1-205 - 80MM [3 1/8" ] DCL-M1-240 - 115MM [4 1/2"] DCL-M1-270 - 145MM [5 11/16"] DCL-M1-300 - 175MM [6 7/8"] DCL-M1-360 - 235MM [9 1/4"] |
AVAILABLE IN 6 HEIGHTS: DCL-M2-180 - 55MM [2 3/16"] DCL-M2-205 - 80MM [3 1/8" ] DCL-M2-240 - 115MM [4 1/2"] DCL-M2-270 - 145MM [5 11/16"] DCL-M2-300 - 175MM [6 7/8"] DCL-M2-360 - 235MM [9 1/4"] |
AVAILABLE IN 6 HEIGHTS: DCL-M3-180 - 55MM [2 3/16"] DCL-M3-205 - 80MM [3 1/8" ] DCL-M3-240 - 115MM [4 1/2"] DCL-M3-270 - 145MM [5 11/16"] DCL-M3-300 - 175MM [6 7/8"] DCL-M3-360 - 235MM [9 1/4"] |
| MOVEMENT TYPE | MOTORISED | MOTORISED | MOTORISED |
| POWER CONSUMPTION | 720W (MAX) | 720W (MAX) | 720W (MAX) |
| POWER SUPPLY | 240V OR 110V | 240V OR 110V | 240V OR 110V |
| DOWNLOADS / SUPPORT | |||
| TECHNICAL SHEET |
 DCL-M1 TECH
|
DCL-M2 TECH
|
DCL-M3 TECH
|
| CAD |
 DCL-M1 CAD
|
DCL-M2 CAD
|
DCL-M3 CAD
|
| TECHNICAL SPECIFICATION | ||
|---|---|---|
| CONTROL OPTIONS (AS STANDARD) | DCL-M1 | RS232 / CONTACT CLOSURE / IR |
| DCL-M2 | RS232 / CONTACT CLOSURE / IR | |
| DCL-M3 | RS232 / CONTACT CLOSURE / IR | |
| FINISH (CUSTOM AVAILABLE) | DCL-M1 |
MECHANISM: BLACK - RAL9005 CAMERA MOUNT: WHITE - RAL9910 SATIN FINISH |
| DCL-M2 |
MECHANISM: BLACK - RAL9005 CAMERA MOUNT: WHITE - RAL9910 SATIN FINISH |
|
| DCL-M3 |
MECHANISM: BLACK - RAL9005 CAMERA MOUNT: WHITE - RAL9910 SATIN FINISH |
|
| MAX CAMERA DIAMETER | DCL-M1 | Ø160MM [6 5/16"] |
| DCL-M2 | Ø210MM [8 1/4"] | |
| DCL-M3 | Ø260MM [10 1/4"] | |
| MAX CAMERA HEIGHT | DCL-M1 |
AVAILABLE IN 6 HEIGHTS: DCL-M1-180 - 55MM [2 3/16"] DCL-M1-205 - 80MM [3 1/8" ] DCL-M1-240 - 115MM [4 1/2"] DCL-M1-270 - 145MM [5 11/16"] DCL-M1-300 - 175MM [6 7/8"] DCL-M1-360 - 235MM [9 1/4"] |
| DCL-M2 |
AVAILABLE IN 6 HEIGHTS: DCL-M2-180 - 55MM [2 3/16"] DCL-M2-205 - 80MM [3 1/8" ] DCL-M2-240 - 115MM [4 1/2"] DCL-M2-270 - 145MM [5 11/16"] DCL-M2-300 - 175MM [6 7/8"] DCL-M2-360 - 235MM [9 1/4"] |
|
| DCL-M3 |
AVAILABLE IN 6 HEIGHTS: DCL-M3-180 - 55MM [2 3/16"] DCL-M3-205 - 80MM [3 1/8" ] DCL-M3-240 - 115MM [4 1/2"] DCL-M3-270 - 145MM [5 11/16"] DCL-M3-300 - 175MM [6 7/8"] DCL-M3-360 - 235MM [9 1/4"] |
|
| MOVEMENT TYPE | DCL-M1 | MOTORISED |
| DCL-M2 | MOTORISED | |
| DCL-M3 | MOTORISED | |
| POWER CONSUMPTION | DCL-M1 | 720W (MAX) |
| DCL-M2 | 720W (MAX) | |
| DCL-M3 | 720W (MAX) | |
| POWER SUPPLY | DCL-M1 | 240V OR 110V |
| DCL-M2 | 240V OR 110V | |
| DCL-M3 | 240V OR 110V | |
| DOWNLOADS / SUPPORT | ||
| TECHNICAL SHEET |
