EAD100 TECH SPECS
ELECTRIC ADVANCE & DROP TV WALL MOUNT - HEAVY

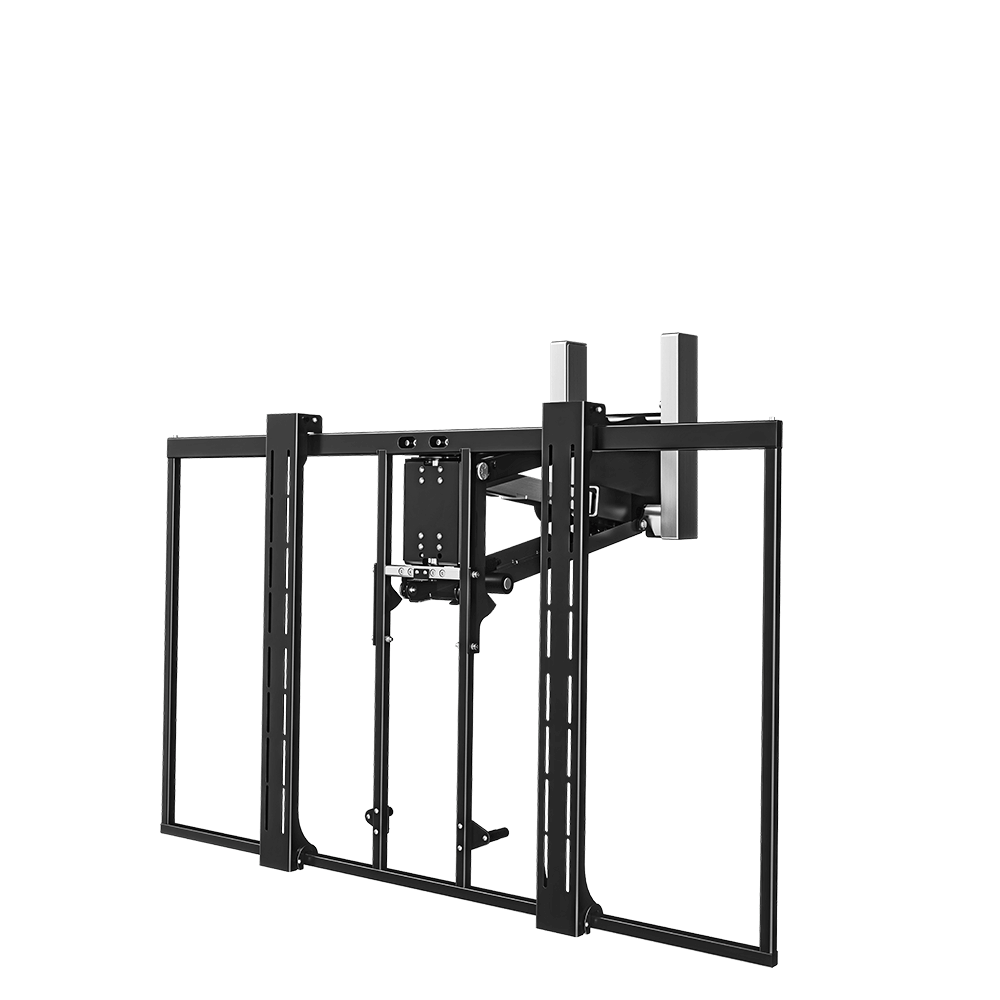

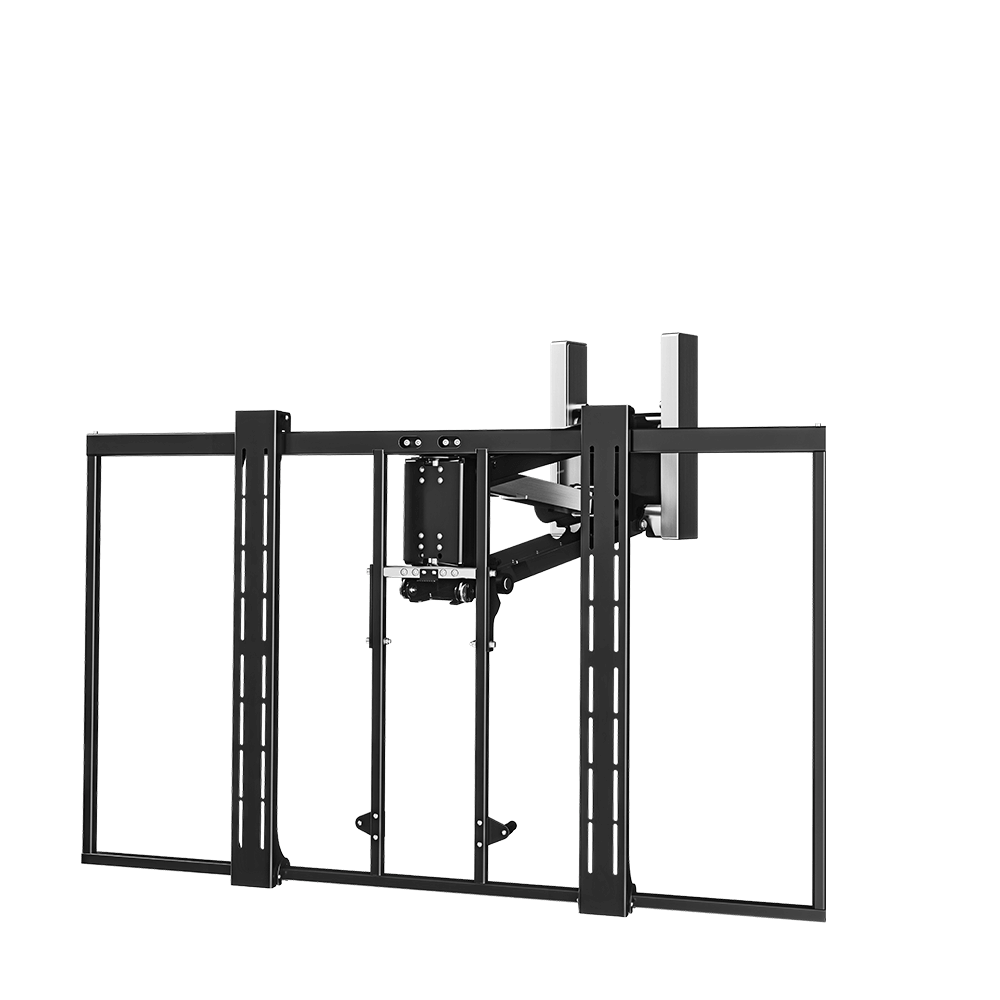

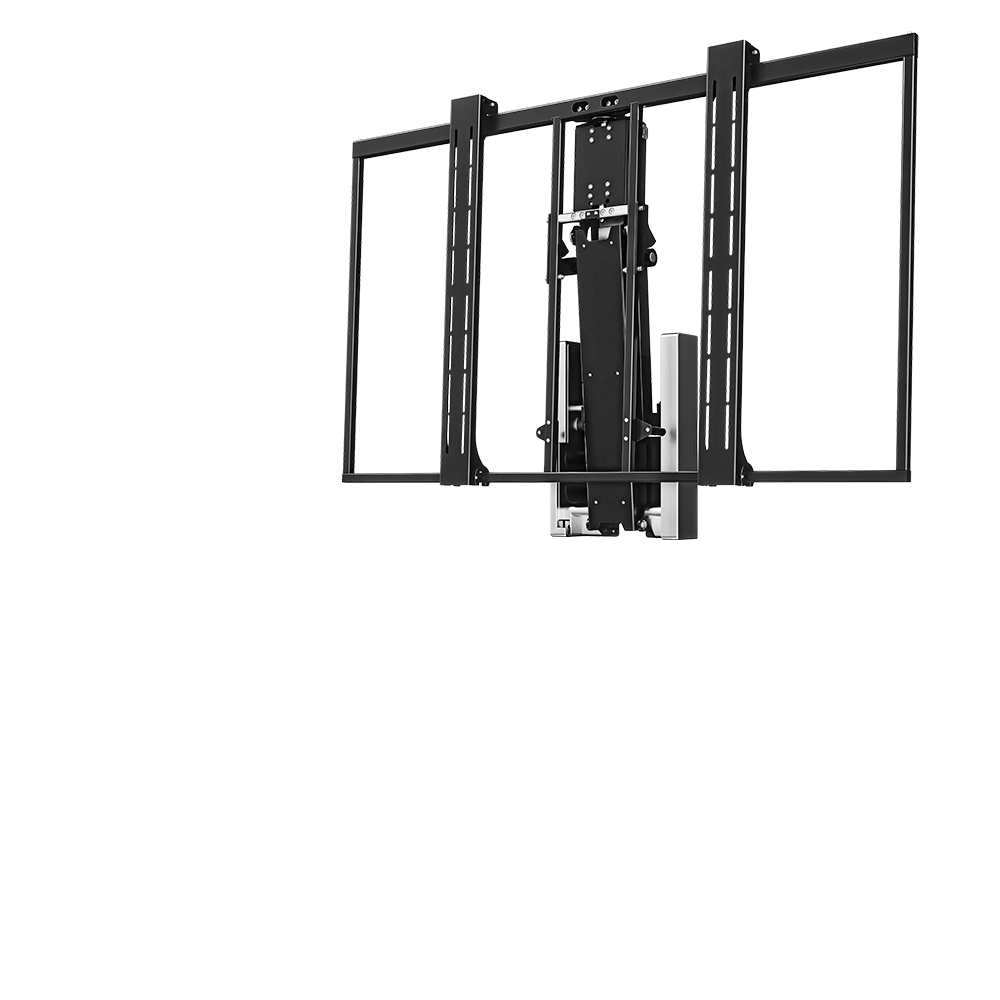

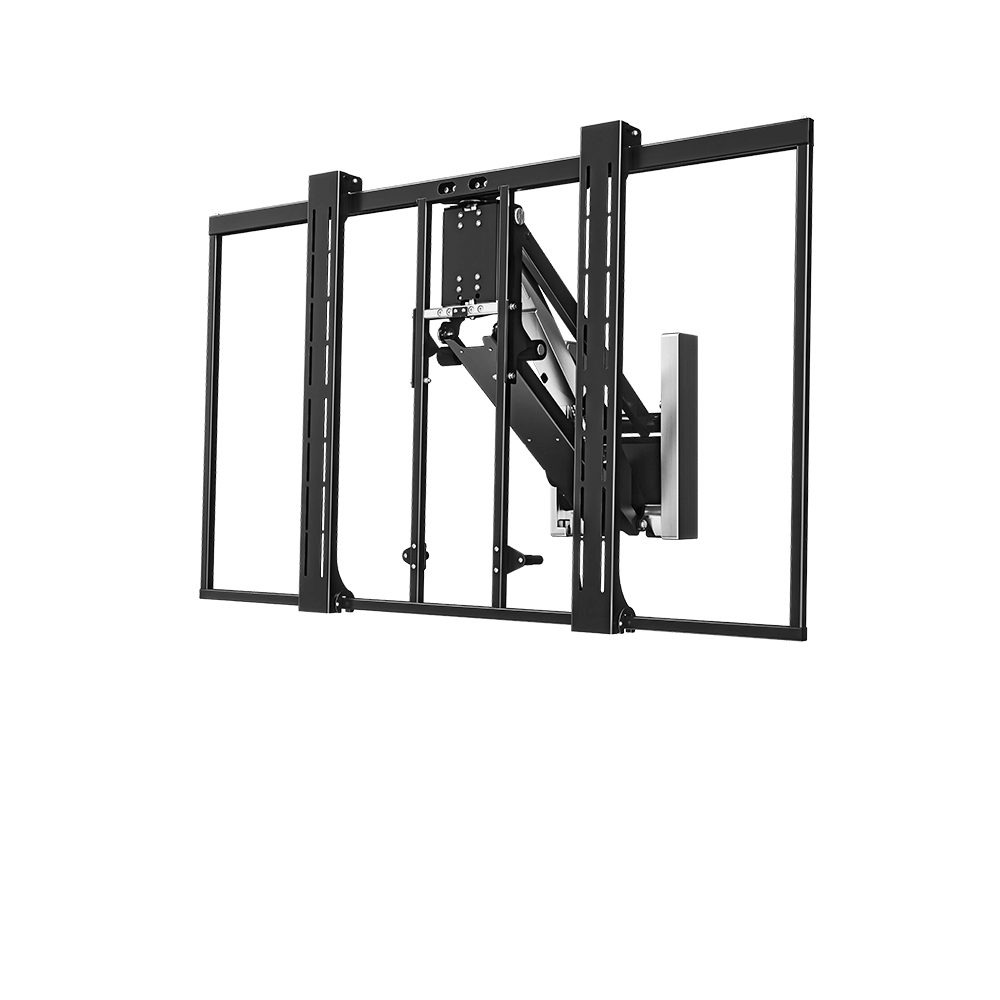

The EAD100 is a heavy duty electric advance and drop TV wall mount designed to move a large display screen down to a more desirable viewing height.
The down and out movement make this ideal for mounting a TV over a fireplace as the EAD100 moves forward to clear a mantle piece and then drops down for a more favourable viewing position. A manual swivel allows up to a 20° rotation in each direction, helping to create a truly unique and creative solution.
- Unique Forward and Drop (Out and Down) Motion
- Removable Magnetic Covers to Create a Neat Finish
- Simple Hook-on Style Screen Mount (As found on the PS Bracket range)
- Perfect For Mounting TV Above Fireplaces
- A simple, single point tilt adjustment to ensure that the screen is always parallel to the wall
- Full Cable Management
- Smooth Quiet Motion
HAND CRAFTED IN HOUSE
TECHNICAL SPECIFICATION
| PRODUCT CODE | EAD100 |
|---|---|
| BOLT PATTERN | (H) 800, 600, 500, 400, 300 (W) 1500, 1400, 1300, 1200, 1100, 1000, 900, 800, 700, 600, 500, 400 |
| CONTROL OPTIONS | IR REMOTE, RS232, CONTACT CLOSURE |
| DEPTH FROM WALL | 230MM (9 1/16") |
| FINISH | RAL 9005 BLACK (SATIN) & ALUMINIUM - CUSTOM AVAILABLE |
| MAX EXTENSION FROM WALL | 883MM (34 3/4") |
| MAX ROTATION | UP TO 20° BI-DIRECTIONAL (MANUAL) |
| MAX WEIGHT CAPACITY | 160KG (353LB) |
| MAXIMUM DROP FROM IN POSITION | 835MM (32 7/8") |
| MOVEMENT TYPE | MOTORISED ADVANCE & DROP WITH MANUAL ROTATION |
| POWER CONSUMPTION MAX | 120W |
| POWER CONSUMPTION STANDBY | 3W |
| POWER SUPPLY REQUIRED | 110V - 240V AC |
| PRODUCT DIMENSIONS | 1155 X 1600 X 230MM (45 1/2 X 63 X 9 1/16") |
| RECOMMENDED SCREEN SIZES | 97"+ |
