LSH-S-MO TECH SPECS
OUTDOOR MARINE HEAVY DUTY TV LIFT & SWIVEL

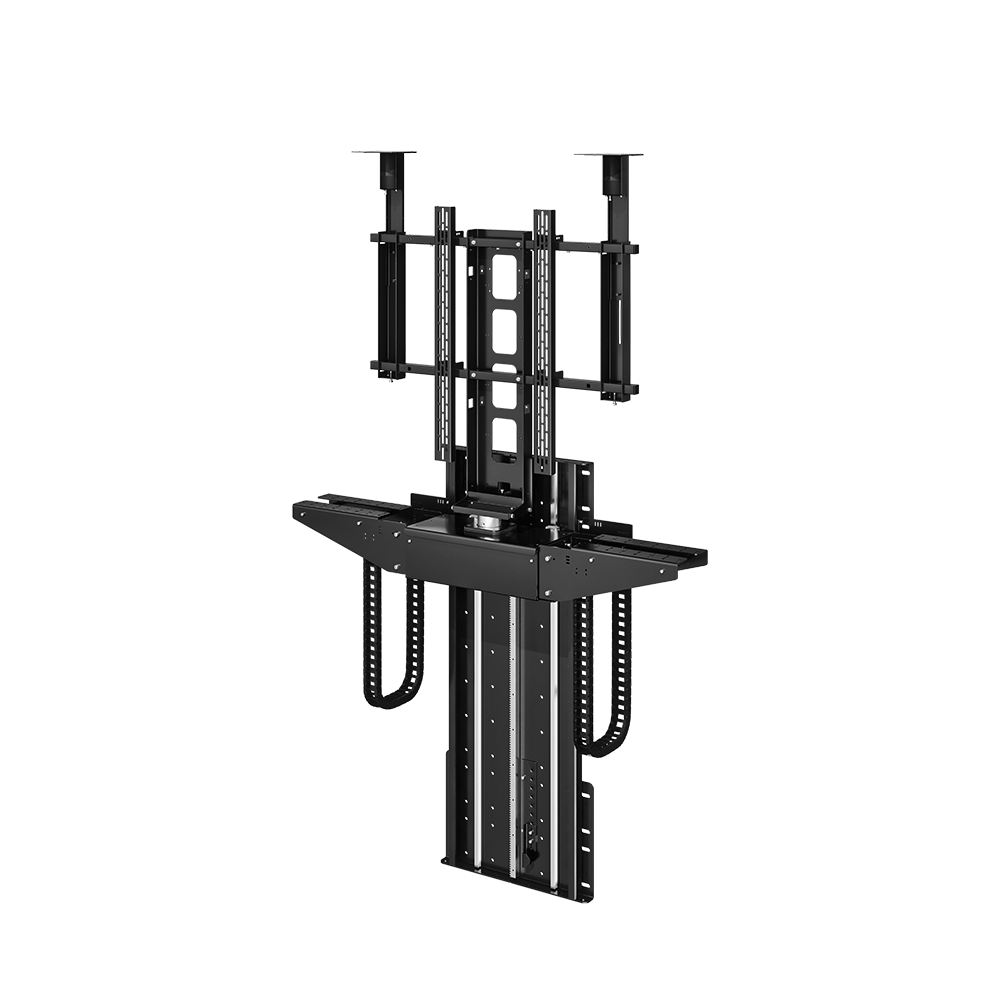

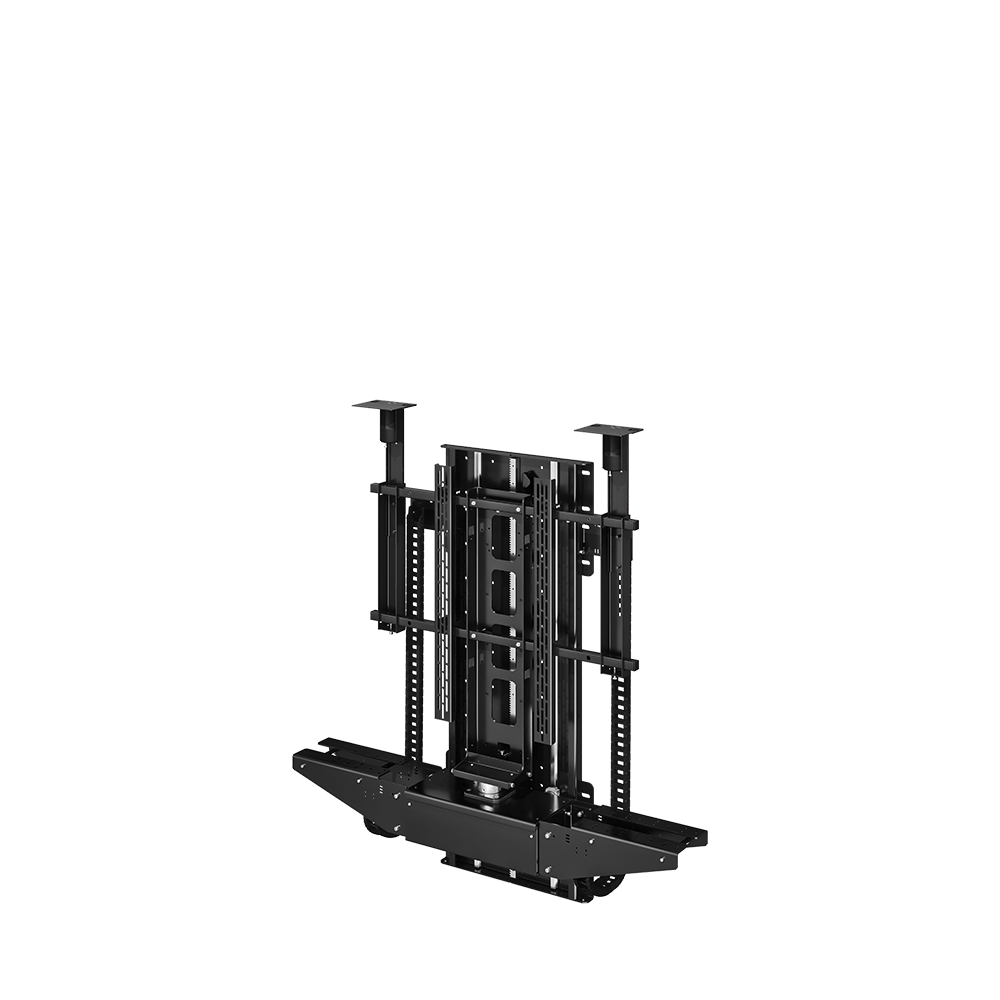

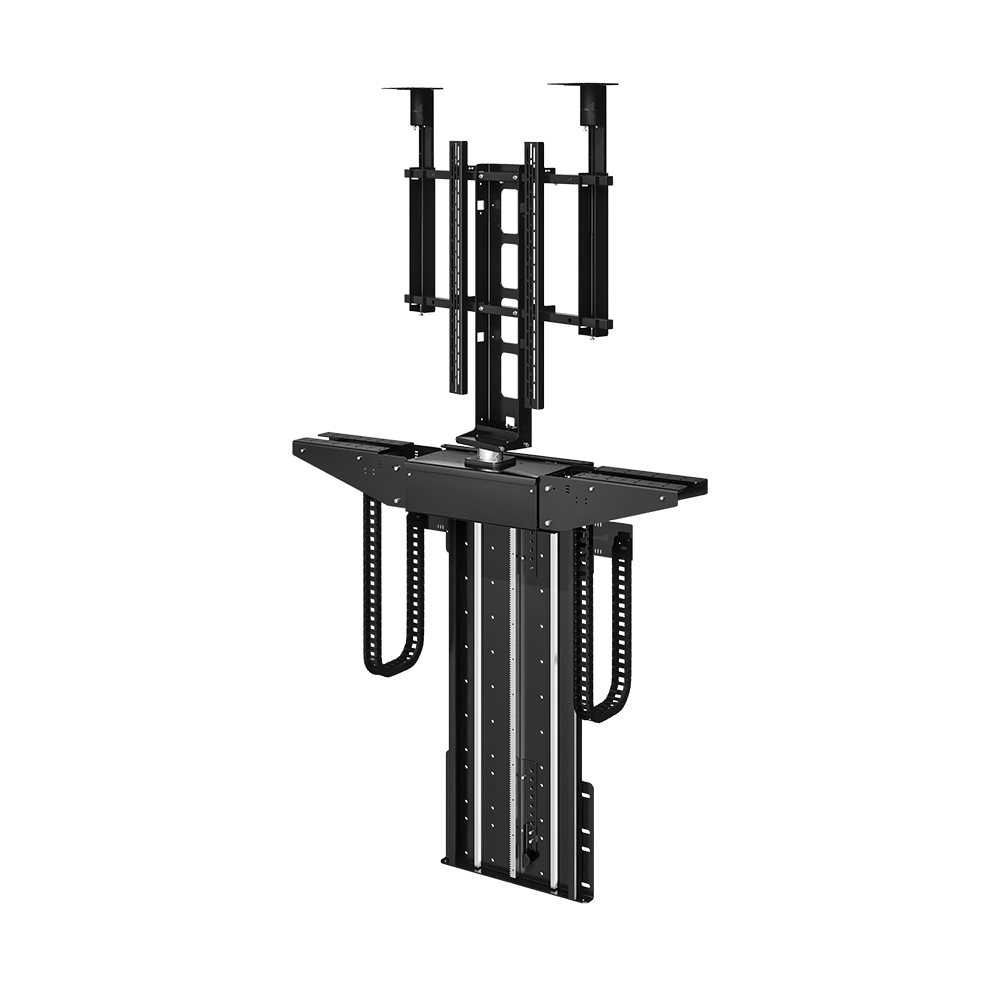

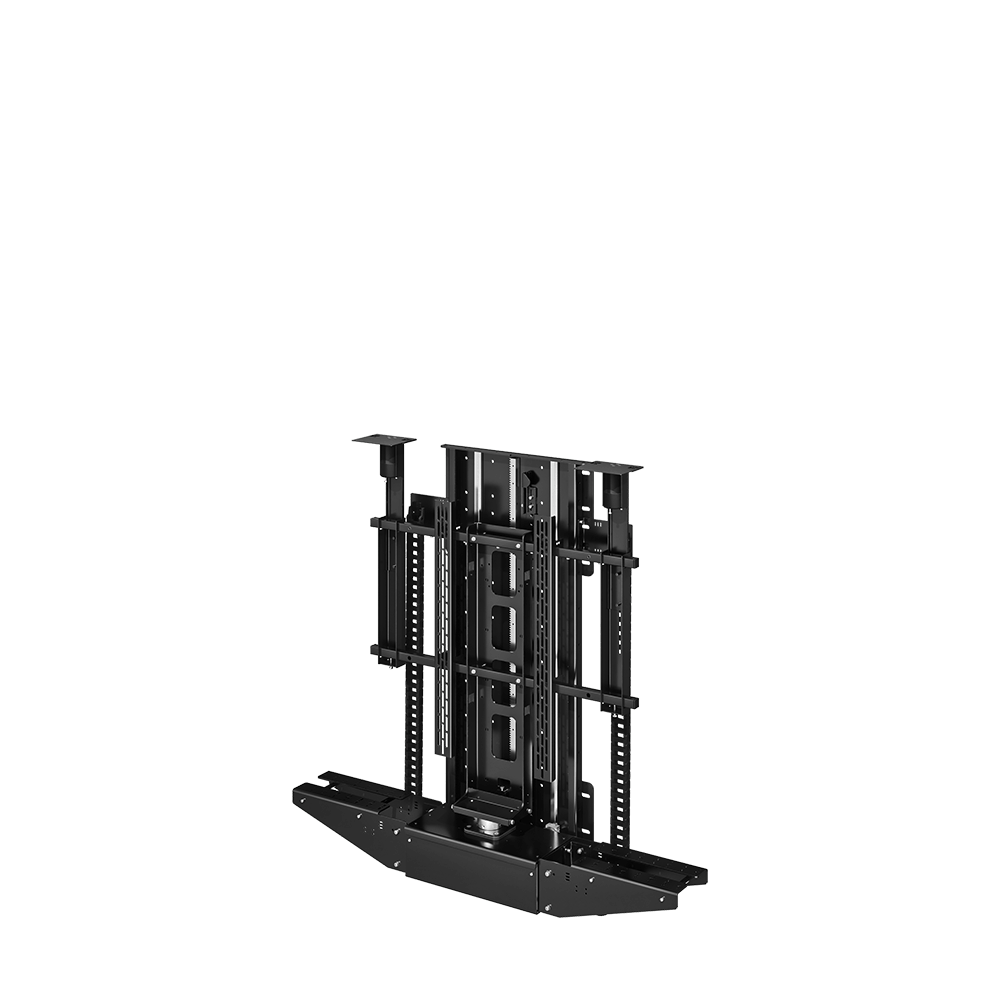

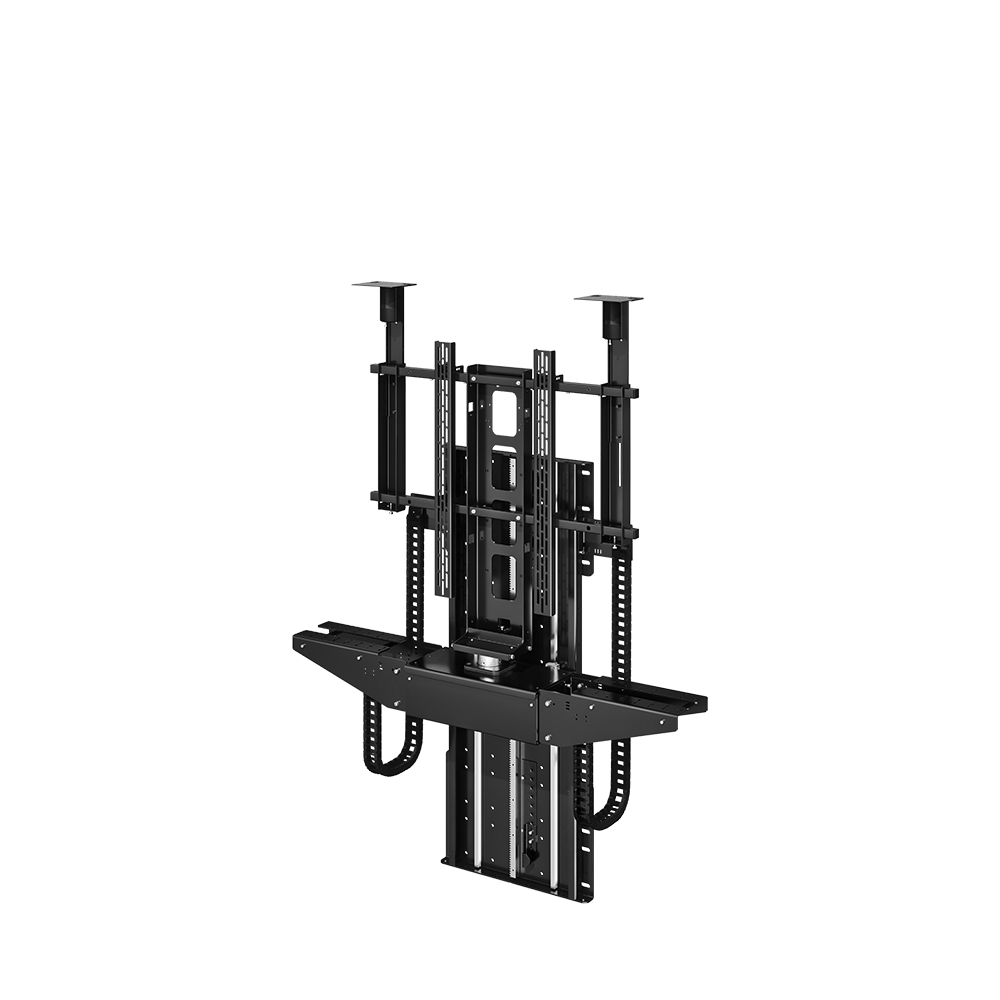

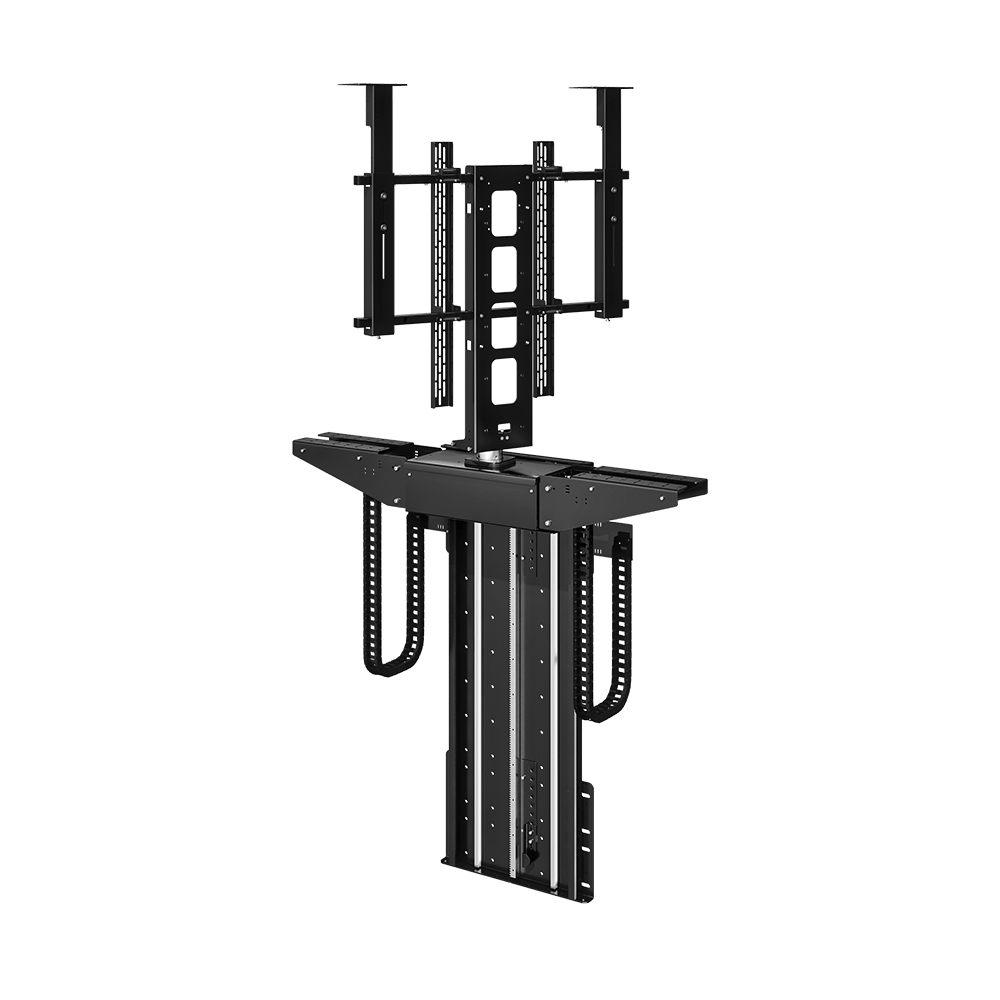

The LSH-S-MO is a premium outdoor TV lift & swivel mechanism, designed to elegantly conceal large displays within furniture, cabinetry, or architectural joinery. Engineered for smooth, reliable operation and exceptional stability, the mechanism raises the screen vertically into view at the touch of a button before returning it discreetly out of sight when not required.
Outdoor suitable features include a sealed lifting beam, stainless steel components and an IP rated control box, all designed to handle the environmental strains typically put on outdoor systems.
With a fully programmable swivel of up to 180° in each direction, the LSH-S-MO is a practical mechanism when there are different viewing positions required in one room.
Available in a range of sizes to accommodate displays from 55" to 85", the LSH-S-MO range provides designers and integrators with a highly versatile concealment solution. Optional telescopic and high-power servo configurations enable truly bespoke installations for luxury residential, marine and commercial environments.
| LSH-S-MO IS AVAILABLE IN 4 STANDARD SIZES | |||||
|---|---|---|---|---|---|
| APPROX SCREEN SIZE | INTERNAL CABINET HEIGHT | MIN SCREEN HEIGHT | MAX SCREEN HEIGHT | MAX WEIGHT | PRODUCT |
| 55" | 1110MM [43 11/16"] |
680mm [26 3/4"] |
800mm [31 1/2"] |
100KG [220LBS] |
LSH-S5-MO |
| 65" | 1230mm [48 7/16"] |
800mm [31 1/2"] |
920mm [36 1/4"] |
100KG [220LBS] |
LSH-S6-MO |
| 75" | 1350mm [53 1/8"] |
920mm [36 1/4"] |
1040mm [40 15/16"] |
100KG [220LBS] |
LSH-S7-MO |
| 85" | 1470mm [57 7/8"] |
1040mm [40 15/16"] |
1160mm [45 11/16"] |
100KG [220LBS] |
LSH-S8-MO |
HAND CRAFTED IN HOUSE
TECHNICAL SPECIFICATION
| PRODUCT CODE | LSH-S5-MO | LSH-S6-MO | LSH-S7-MO | LSH-S8-MO |
|---|---|---|---|---|
| CONTROL OPTIONS (AS STANDARD) | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR |
| CONTROL OPTIONS (OPTIONAL) | RF | RF | RF | RF |
| FINISH (CUSTOM AVAILABLE) | BLACK PAINT - RAL 9005 | BLACK PAINT - RAL 9005 | BLACK PAINT - RAL 9005 | BLACK PAINT - RAL 9005 |
| INTERNAL CABINET HEIGHT | 1110MM [43 11/16"] | 1230MM [48 7/16"] | 1350MM [53 1/8"] | 1470MM [57 7/8"] |
| MAX SCREEN HEIGHT | 800MM [31 1/2"] | 920MM [36 1/4"] | 1040MM [40 15/16"] | 1160MM [45 11/16"] |
| MAXIMUM LIFTING CAPACITY | 100KG [220LBS] (HIGHER LIFTING CAPACITY OPTION AVAILABLE) | 100KG [220LBS] (HIGHER LIFTING CAPACITY OPTION AVAILABLE) | 100KG [220LBS] (HIGHER LIFTING CAPACITY OPTION AVAILABLE) | 100KG [220LBS] (HIGHER LIFTING CAPACITY OPTION AVAILABLE) |
| MINIMUM SCREEN HEIGHT | 680MM [26 3/4"] | 800MM [31 1/2"] | 920MM [36 1/4"] | 1040MM [40 15/16"] |
| MOVEMENT TYPE | MOTORISED | MOTORISED | MOTORISED | MOTORISED |
| DOWNLOADS / SUPPORT | ||||
| TECHNICAL SHEET |
 LSH-S5-MO TECH
|
LSH-S6-MO TECH
|
LSH-S7-MO TECH
|
LSH-S8-MO TECH
|
| SAFETY DOCUMENTS |
LSH-S-BE (BOX ENCLOSURE) INTEGRATION CONSIDERATIONS
LSH-S (FIXED LID) INTEGRATION CONSIDERATIONS
|
|||
| CAD |
 LSH-S5-MO CAD
|
LSH-S6-MO CAD
|
LSH-S7-MO CAD
|
LSH-S8-MO CAD
|
| TECHNICAL SPECIFICATION | ||
|---|---|---|
| CONTROL OPTIONS (AS STANDARD) | LSH-S5-MO | RS232 / CONTACT CLOSURE / IR |
| LSH-S6-MO | RS232 / CONTACT CLOSURE / IR | |
| LSH-S7-MO | RS232 / CONTACT CLOSURE / IR | |
| LSH-S8-MO | RS232 / CONTACT CLOSURE / IR | |
| CONTROL OPTIONS (OPTIONAL) | LSH-S5-MO | RF |
| LSH-S6-MO | RF | |
| LSH-S7-MO | RF | |
| LSH-S8-MO | RF | |
| FINISH (CUSTOM AVAILABLE) | LSH-S5-MO | BLACK PAINT - RAL 9005 |
| LSH-S6-MO | BLACK PAINT - RAL 9005 | |
| LSH-S7-MO | BLACK PAINT - RAL 9005 | |
| LSH-S8-MO | BLACK PAINT - RAL 9005 | |
| INTERNAL CABINET HEIGHT | LSH-S5-MO | 1110MM [43 11/16"] |
| LSH-S6-MO | 1230MM [48 7/16"] | |
| LSH-S7-MO | 1350MM [53 1/8"] | |
| LSH-S8-MO | 1470MM [57 7/8"] | |
| MAX SCREEN HEIGHT | LSH-S5-MO | 800MM [31 1/2"] |
| LSH-S6-MO | 920MM [36 1/4"] | |
| LSH-S7-MO | 1040MM [40 15/16"] | |
| LSH-S8-MO | 1160MM [45 11/16"] | |
| MAXIMUM LIFTING CAPACITY | LSH-S5-MO | 100KG [220LBS] (HIGHER LIFTING CAPACITY OPTION AVAILABLE) |
| LSH-S6-MO | 100KG [220LBS] (HIGHER LIFTING CAPACITY OPTION AVAILABLE) | |
| LSH-S7-MO | 100KG [220LBS] (HIGHER LIFTING CAPACITY OPTION AVAILABLE) | |
| LSH-S8-MO | 100KG [220LBS] (HIGHER LIFTING CAPACITY OPTION AVAILABLE) | |
| MINIMUM SCREEN HEIGHT | LSH-S5-MO | 680MM [26 3/4"] |
| LSH-S6-MO | 800MM [31 1/2"] | |
| LSH-S7-MO | 920MM [36 1/4"] | |
| LSH-S8-MO | 1040MM [40 15/16"] | |
| MOVEMENT TYPE | LSH-S5-MO | MOTORISED |
| LSH-S6-MO | MOTORISED | |
| LSH-S7-MO | MOTORISED | |
| LSH-S8-MO | MOTORISED | |
| DOWNLOADS / SUPPORT | ||
| TECHNICAL SHEET |
LSH-S5-MO Tech
LSH-S6-MO Tech
LSH-S7-MO Tech
LSH-S8-MO Tech
|
|
| CAD |
LSH-S5-MO CAD
LSH-S6-MO CAD
LSH-S7-MO CAD
LSH-S8-MO CAD
|
|
