PD TECH SPECS
PROJECTOR LIFT
The Future Automation PD Projector Drop mechanism is the leading automated projector lift solution for home cinema installations.
Its height efficient design, coupled with its adjustable drop distance makes the PD mechanism a favourite for leading audio visual installers around the world.
- Range of drop distances available to suit varying ceiling heights
- Three standard sizes with customisable sizing available
- Supplied with IR, Contract Control, and RS232 control options
- Made in house, in our dedicated facilities located in Great Britain and the USA
- Slotted mounting system for universal projector mounting
COMPACT DESIGN
MAXIMUM EFFECT
Three standard sizes of PD Projector Drop mechanism cover most common sizes of home cinema projector, while customisable nature of the PD’s design allows for resizing to suit large units. All PD mechanisms are fitted with lid fall arrest cables as standard and feature tilt adjustment on the main carriage to adjust the pitch of the projector when the mechanism is open. Drop distance is easily adjustable once installed to allow exact positioning of the project and the mechanisms precision engineering means the unit will hit the same stop point every time.
The PD Projector Drop mechanism is the perfect solution for transforming any living space into a home cinema.

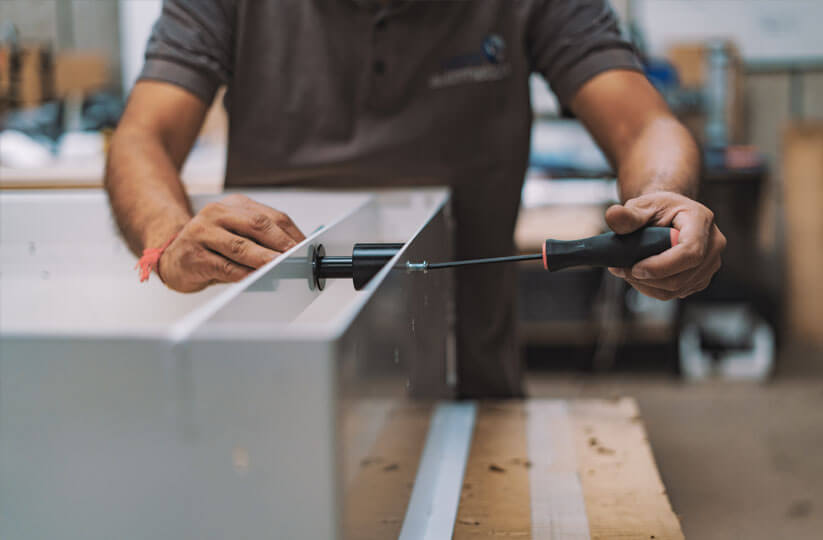

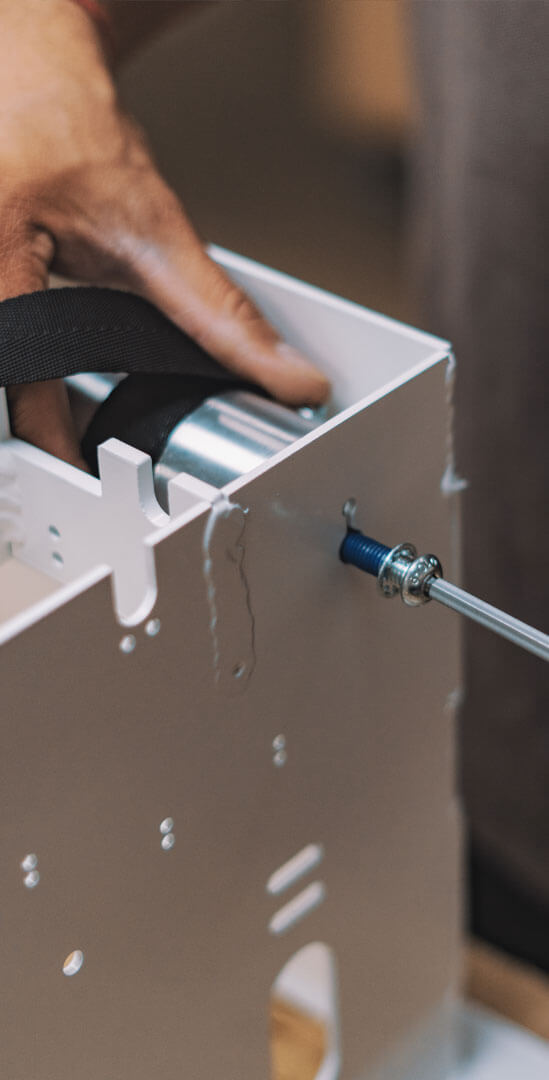

HAND CRAFTED IN HOUSE
TECHNICAL SPECIFICATION
| PRODUCT CODE | PD1 | PD2.5 | PD3.5 | PD-CUSTOM |
|---|---|---|---|---|
| CONTROL OPTIONS |
RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
| DECIBEL RATING | 46DB | 46DB | 59DB | VARIABLE |
| DEPTH WITHIN CEILING | 210MM (8.26") | 211MM (8.30") | 261MM (10.27") | REQUIRED HEIGHT |
| FINISH (CUSTOM AVAILABLE) | WHITE PAINT - RAL9910 | WHITE PAINT - RAL9910 | WHITE PAINT - RAL9910 | CUSTOM FINISH |
| MAX PROJECTOR SIZE (WXDXH) |
400 X 460 X 190MM (15.74 X 18.11 X 7.48") |
505 X 560 X 195MM (19.88 X 22.04 X 7.67") |
560 X 650 X 235MM (22.04 X 25.59 X 9.25") |
REQUIRED PROJECTOR SIZE |
| MAX WEIGHT | 15KG (33LBS) | 15KG (33LBS) | 45KG (99LBS) | REQUIRED WEIGHT |
| MOVEMENT TYPE | MOTORISED | MOTORISED | MOTORISED | MOTORISED |
| POWER CONSUMPTION | 110W | 110W | 110W | N/A |
| POWER SUPPLY | 240V OR 110V | 240V OR 110V | 240V OR 110V | 240V OR 110V |
| TILT | UP TO 10° | UP TO 10° | N/A | REQUIRED TILT |
| TRAVEL FROM CEILING |
400MM (15.74") - STANDARD 700MM (27.55") - AVAILABLE 940MM (37.00") - AVAILABLE |
400MM (15.74") - STANDARD 700MM (27.55") - AVAILABLE 940MM (37.00") - AVAILABLE |
740MM (29.13") - STANDARD 1200MM (47.24") - AVAILABLE |
REQUIRED TRAVEL |
| SHIPPING INFORMATION | ||||
| SHIPPING DIMENSIONS |
74 x 74 x 32cm (29.13 x 29.13 x 12.59") |
95 x 95 x 35cm (37.40 x 37.40 x 13.77") |
107 x 107 x 48cm (42.12 x 42.12 x18.89") |
Variable |
| SHIPPING WEIGHT | 22kg (49lbs) | 32kg (70lbs) | 83kg (183lbs) | Variable |
| DOWNLOADS / SUPPORT | ||||
| SPECIFICATION TOOLS | ||||
| TECHNICAL SHEET |
 PD1 TECH
|
PD2.5 TECH
|
PD3.5 TECH
|
|
| INSTRUCTIONS |
PD INSTRUCTIONS
|
|||
| CAD |
 PD1 CAD
|
PD2.5 CAD
|
PD3.5 CAD
|
|
| TECHNICAL SPECIFICATION | ||||
|---|---|---|---|---|
| CONTROL OPTIONS | PD1 |
RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
||
| PD2.5 |
RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
|||
| PD3.5 |
RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
|||
| PD-CUSTOM |
RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
|||
| DECIBEL RATING | PD1 | 46DB | ||
| PD2.5 | 46DB | |||
| PD3.5 | 59DB | |||
| PD-CUSTOM | VARIABLE | |||
| DEPTH WITHIN CEILING | PD1 | 210MM (8.26") | ||
| PD2.5 | 211MM (8.30") | |||
| PD3.5 | 261MM (10.27") | |||
| PD-CUSTOM | REQUIRED HEIGHT | |||
| FINISH (CUSTOM AVAILABLE) | PD1 | WHITE PAINT - RAL9910 | ||
| PD2.5 | WHITE PAINT - RAL9910 | |||
| PD3.5 | WHITE PAINT - RAL9910 | |||
| PD-CUSTOM | CUSTOM FINISH | |||
| MAX PROJECTOR SIZE (WXDXH) | PD1 |
400 X 460 X 190MM (15.74 X 18.11 X 7.48") |
||
| PD2.5 |
505 X 560 X 195MM (19.88 X 22.04 X 7.67") |
|||
| PD3.5 |
560 X 650 X 235MM (22.04 X 25.59 X 9.25") |
|||
| PD-CUSTOM | REQUIRED PROJECTOR SIZE | |||
| MAX WEIGHT | PD1 | 15KG (33LBS) | ||
| PD2.5 | 15KG (33LBS) | |||
| PD3.5 | 45KG (99LBS) | |||
| PD-CUSTOM | REQUIRED WEIGHT | |||
| MOVEMENT TYPE | PD1 | MOTORISED | ||
| PD2.5 | MOTORISED | |||
| PD3.5 | MOTORISED | |||
| PD-CUSTOM | MOTORISED | |||
| POWER CONSUMPTION | PD1 | 110W | ||
| PD2.5 | 110W | |||
| PD3.5 | 110W | |||
| PD-CUSTOM | N/A | |||
| POWER SUPPLY | PD1 | 240V OR 110V | ||
| PD2.5 | 240V OR 110V | |||
| PD3.5 | 240V OR 110V | |||
| PD-CUSTOM | 240V OR 110V | |||
| TILT | PD1 | UP TO 10° | ||
| PD2.5 | UP TO 10° | |||
| PD3.5 | N/A | |||
| PD-CUSTOM | REQUIRED TILT | |||
| TRAVEL FROM CEILING | PD1 |
400MM (15.74") - STANDARD 700MM (27.55") - AVAILABLE 940MM (37.00") - AVAILABLE |
||
| PD2.5 |
400MM (15.74") - STANDARD 700MM (27.55") - AVAILABLE 940MM (37.00") - AVAILABLE |
|||
| PD3.5 |
740MM (29.13") - STANDARD 1200MM (47.24") - AVAILABLE |
|||
| PD-CUSTOM | REQUIRED TRAVEL | |||
| SHIPPING DIMENSIONS | ||||
| SHIPPING DIMENSIONS | PD1 |
74 x 74 x 32cm (29.13 x 29.13 x 12.59") |
||
| PD2.5 |
95 x 95 x 35cm (37.40 x 37.40 x 13.77") |
|||
| PD3.5 |
107 x 107 x 48cm (42.12 x 42.12 x18.89") |
|||
| PD-CUSTOM | Variable | |||
| SHIPPING WEIGHT | PD1 | 22kg (49lbs) | ||
| PD2.5 | 32kg (70lbs) | |||
| PD3.5 | 83kg (183lbs) | |||
| PD-CUSTOM | Variable | |||
| DOWNLOADS / SUPPORT | ||||
| SPECIFICATION TOOLS | ||||
| TECHNICAL SHEET |
PD1 Tech
PD2.5 Tech
PD3.5 Tech
|
|||
| INSTRUCTIONS |
PD Instructions
|
|||
| CAD |
PD1 CAD
PD2.5 CAD
PD3.5 CAD
|
|||
