PIC-H TECH SPECS

HEAVY DUTY PICTURE LIFT MECHANISM

The Heavy Duty Picture Lift mechanism allows a flat screen to be concealed in a recess behind a heavy piece of art work or mirror.

A range of travel options are available to allow any screen from 32” to 65” to be concealed.

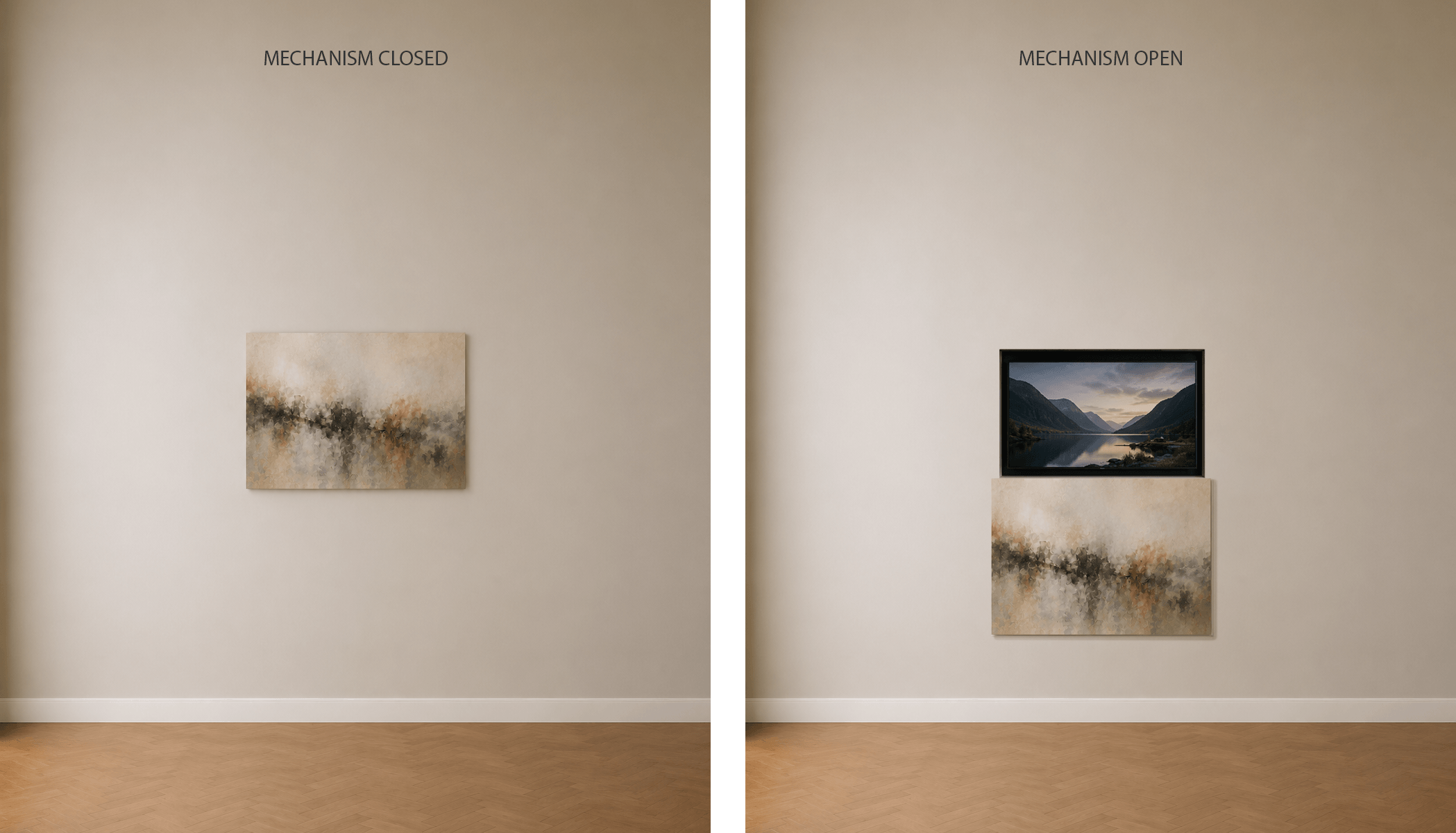

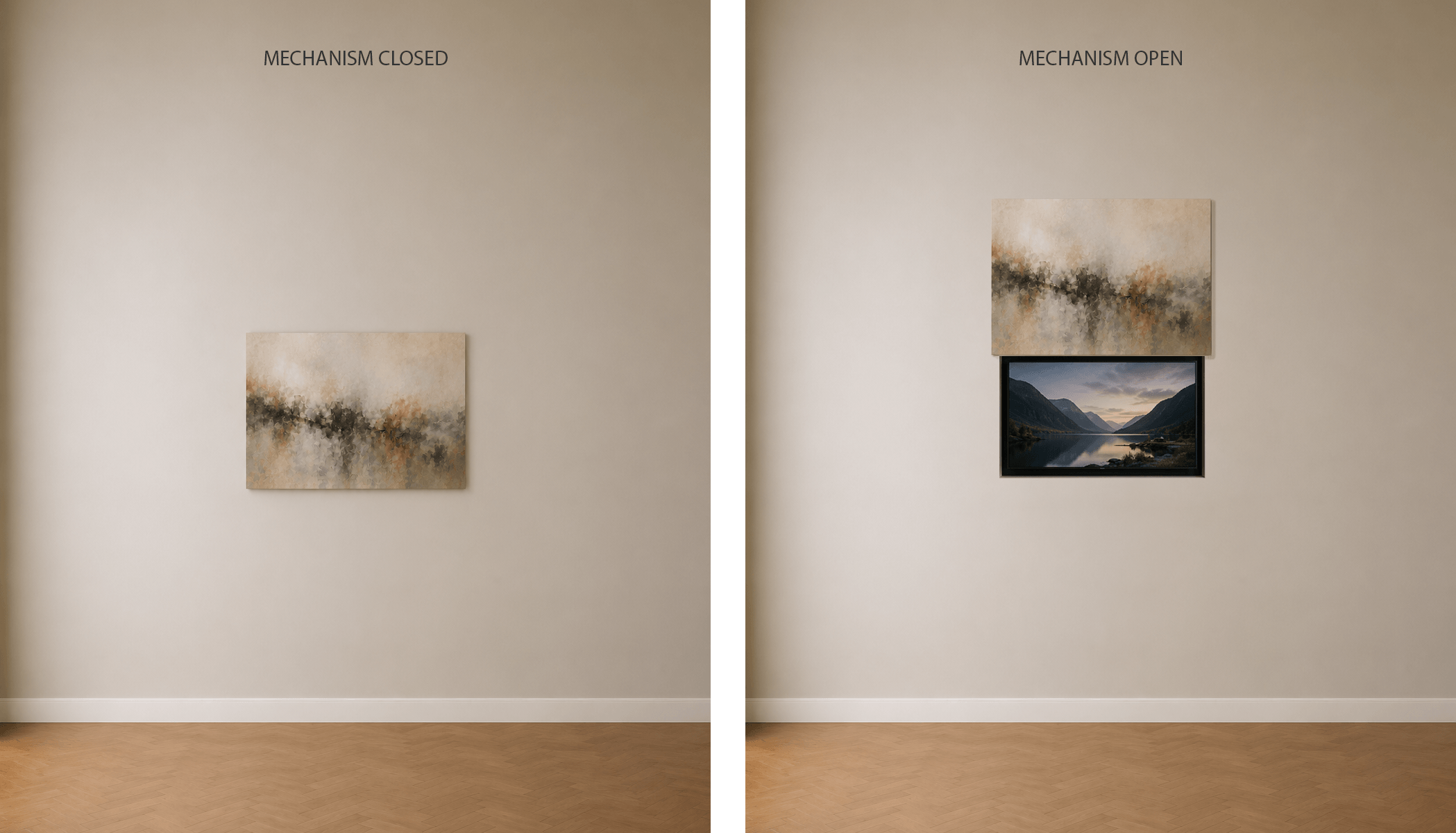

The single panel, picture or mirror can either raise or lower to reveal the screen – a brilliantly simple mechanism to conceal a screen in a wall.

  • Range of travel distances
  • Smooth quiet motion
  • Option to combine with a motorised bracket
  • Complete sheet metal cassette ensures simple installation
NOTE - This mechanism is not dual voltage - 110 OR 240V will need to be specified upon ordering
Canvas Service

Pair any of our moving picture mechanisms with a beautifully crafted timber frame canvas. Choose from our gallery of images, or submit your own and our team will professionally craft a canvas that will fit perfectly on any mechanism in our PIC range.

FIND OUT MORE

HAND CRAFTED IN HOUSE

Manufacturing Image 1
Manufacturing Image 2 Manufacturing Image 3
Manufacturing Image 4

TECHNICAL SPECIFICATION

PRODUCT CODE PIC-H1 PIC-H2 PIC-H3 PIC-H-BESPOKE
CONTROL OPTIONS RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)
DECIBEL RATING 59DB 59DB 59DB VARIABLE
DEPTH WITHIN WALL 80MM (3.14") 80MM (3.14") 80MM (3.14") VARIABLE
FINISH (CUSTOM AVAILABLE) BLACK PAINT - RAL 9005 BLACK PAINT - RAL 9005 BLACK PAINT - RAL 9005 BLACK PAINT - RAL 9005
MAX TRAVEL OF PANEL 710MM (27.95") 860MM (33.85") 1010MM (39.76") REQUIRED DISTANCE
MAX WEIGHT OF PANEL 35KG (77LBS) 35KG (77LBS) 35KG (77LBS) REQUIRED WEIGHT
MOVEMENT TYPE MOTORISED MOTORISED MOTORISED MOTORISED
POWER CONSUMPTION 110W 110W 110W VARIABLE
POWER CONSUMPTION (STANDBY) 3W 3W 3W VARIABLE
POWER SUPPLY 240V OR 110V 240V OR 110V 240V OR 110V 240V OR 110V
SHIPPING INFORMATION
SHIPPING DIMENSIONS 127 x 28 x 22cm (50 x 11.02 x 8.66") 127 x 28 x 22cm (50 x 11.02 x 8.66") 130 x 31 x 24cm (51.18 x 12.20 x 9.44") VARIABLE
SHIPPING WEIGHT 16kg (35lbs) 16kg (35lbs) 19kg (42lbs) VARIABLE
DOWNLOADS / SUPPORT
TECHNICAL SHEET PDF DocumentPIC-H1 TECH
PDF DocumentPIC-H2 TECH
PDF DocumentPIC-H3 TECH
INSTRUCTIONS PDF DocumentPIC-H INSTRUCTIONS
CAD CAD FilePIC-H1 CAD
CAD FilePIC-H2 CAD
CAD FilePIC-H3 CAD
TECHNICAL SPECIFICATION
CONTROL OPTIONS PIC-H1 RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)
PIC-H2 RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)
PIC-H3 RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)
PIC-H-BESPOKE RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)
DECIBEL RATING PIC-H1 59DB
PIC-H2 59DB
PIC-H3 59DB
PIC-H-BESPOKE VARIABLE
DEPTH WITHIN WALL PIC-H1 80MM (3.14")
PIC-H2 80MM (3.14")
PIC-H3 80MM (3.14")
PIC-H-BESPOKE VARIABLE
FINISH (CUSTOM AVAILABLE) PIC-H1 BLACK PAINT - RAL 9005
PIC-H2 BLACK PAINT - RAL 9005
PIC-H3 BLACK PAINT - RAL 9005
PIC-H-BESPOKE BLACK PAINT - RAL 9005
MAX TRAVEL OF PANEL PIC-H1 710MM (27.95")
PIC-H2 860MM (33.85")
PIC-H3 1010MM (39.76")
PIC-H-BESPOKE REQUIRED DISTANCE
MAX WEIGHT OF PANEL PIC-H1 35KG (77LBS)
PIC-H2 35KG (77LBS)
PIC-H3 35KG (77LBS)
PIC-H-BESPOKE REQUIRED WEIGHT
MOVEMENT TYPE PIC-H1 MOTORISED
PIC-H2 MOTORISED
PIC-H3 MOTORISED
PIC-H-BESPOKE MOTORISED
POWER CONSUMPTION PIC-H1 110W
PIC-H2 110W
PIC-H3 110W
PIC-H-BESPOKE VARIABLE
POWER CONSUMPTION (STANDBY) PIC-H1 3W
PIC-H2 3W
PIC-H3 3W
PIC-H-BESPOKE VARIABLE
POWER SUPPLY PIC-H1 240V OR 110V
PIC-H2 240V OR 110V
PIC-H3 240V OR 110V
PIC-H-BESPOKE 240V OR 110V
SHIPPING DIMENSIONS
SHIPPING DIMENSIONS PIC-H1 127 x 28 x 22cm (50 x 11.02 x 8.66")
PIC-H2 127 x 28 x 22cm (50 x 11.02 x 8.66")
PIC-H3 130 x 31 x 24cm (51.18 x 12.20 x 9.44")
PIC-H-BESPOKE VARIABLE
SHIPPING WEIGHT PIC-H1 16kg (35lbs)
PIC-H2 16kg (35lbs)
PIC-H3 19kg (42lbs)
PIC-H-BESPOKE VARIABLE
